MQF120O

●Open Frame Medical Switching Power Supply
●Universal Input Range 90-264VAC, 47-63 Hz
●Cooling by Free Air Convection
●100 Watts and 120 Watt with 10CFM Forced Air
●Ultra Compact Size: 3.04 x 2.0 x 1.2 Inches
●4000VAC Input to Output 2MOPP Insulation
●High Efficiency up to 91%
●With P.F.C. Function >0.9
●<0.3W No Load Input Power
●EMI for Both Class I (with PE) and Class II (without PE) Configuration
●Suitable for BF Application with Appropriate System Consideration
●UL / IEC / EN 60601 3.1 Edition Safety Approvals
●3-Year Product Warranty

上一產品：MPU250A

下一產品：MQF500E

產品描述

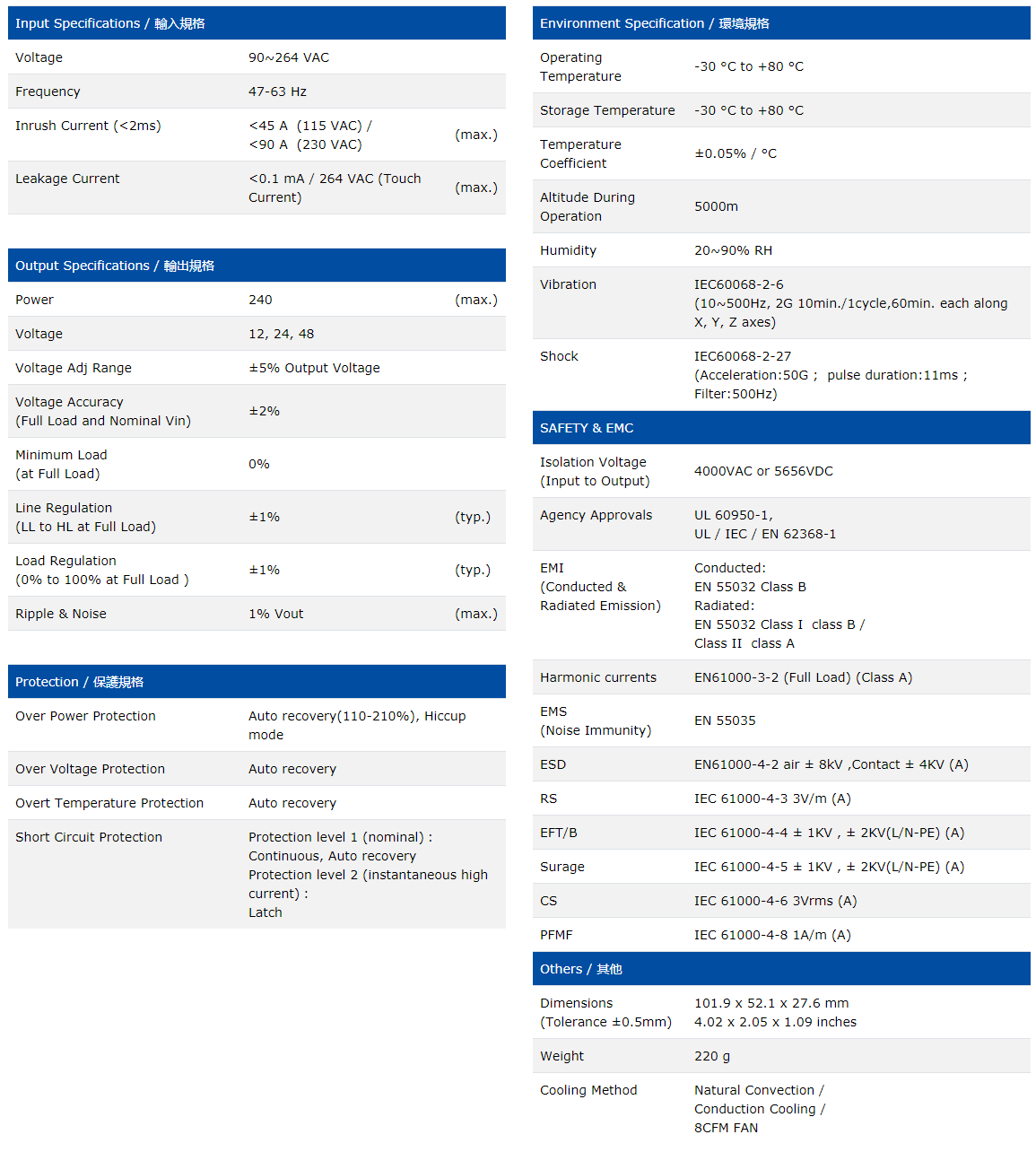

●All specifications valid at nominal input voltage,full load and +25°C after warm-up time unless otherwise stated.
●Measured with 0.1U 50V // 47U 50V Ceramic Cap. Cross to output.
●Please refer to the PDF file published on the web site as the final version.
●We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise.
